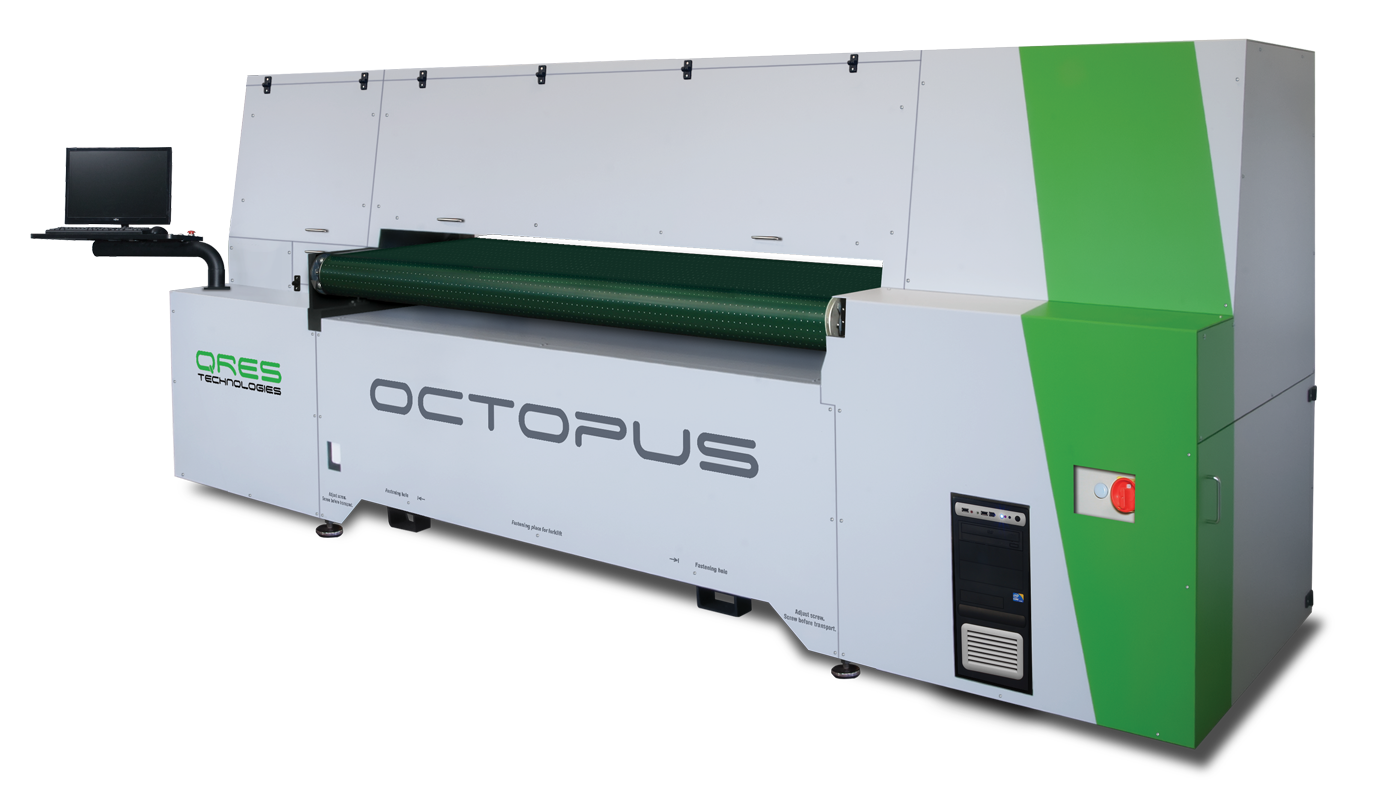

OCTOPUS UPGRADE EXTRA

Unique engineering digital solution for you

The Octopus Upgrade Extra combines high reliability and flexibility of Octopus II printer together with double productivity and exceptional print sharpness of Upgrades by Qres Technologies. This hybrid large format UV printer offers an affordable solution matching your requirements for production and profit.

PRINT HEADS

The performance of Octopus Upgrade Extra is boosted by new Konica Minolta KM1024 print heads series. Double print width together with double number of print nozzles and smaller droplet size of 12 pl expands the capability of the printer. Besides the basic CMYK configuration with 4 print heads, Octopus Upgrade Extra is also available with double number of print heads. If prefered, White and Varnish can be added.

PRINT TABLE

The special construction of working space is designed according to ergonomic standards to optimize the printing process. The flexibility of hybrid printer is enhanced by the maximum media thickness of 60 mm, enabling you to print on almost every possible media, such as rigid, flexible and roll materials. You can easily handle oversized media due to the size print area (2,05 m width and endless lenght of the belt) supported by the Roller Tables and Winding Bars options.

SOFTWARE

Versatility and easy operation, together with an intuitive control system are the main benefits of the Qpro print software. In addition to displaying the basic system data including the print heads temperatures, UV lamps status, ink levels, you can track the status of the print job including number of printed copies or statistical data about ink consumption. Print job settings can be easily found in the print job database. The basic Qpro print software is complemented by Qrip software. Caldera GrandRIP+ V10 software and Colorgate Productionserver 9 is offered as optional.

ROLLER TABLES

Extend the working space and increase your production by using adjustable roller table sized 830 x 1380 mm. It can be easily used in front of the printer or at the back part of it.

TAKE-UP SYSTEM

The take-up system of Octopus Upgrade Extra is specially designed for winding and unwinding flexible roll media.

Take-Up System – 1,6m
Maximum roll width – 1600 mm
Maximum roll weight – 160 kg
Maximum roll diameter – 500 mm

Take-Up System – 2 m
Maximum roll width – 2000 mm
Maximum roll weight – 160 kg
Maximum roll diameter – 500 mm

| Special Features

Adjustable curingLamp power continuously adjustable (50% - 100%)
Lamp-shuttersDynamic operation during printing
Vacuum system4 independently controlled vacuum zones
External vacuum connectionAllowing to locate vacuum turbine externally or inside the printer
Anti-static controlAnti-static bar eliminates static build up on media
Cleaning stationFull access cleaning of print heads under bright
illumination

| Special Features

Adjustable curingLamp power continuously adjustable (50% - 100%)
Lamp-shuttersDynamic operation during printing
Vacuum system4 or 8 independently controlled vacuum zones
External vacuum connectionAllowing to locate vacuum turbine externally or inside the printer
Anti-static controlAnti-static bar eliminates static build up on media
Cleaning stationFull access cleaning of print heads under bright
illumination

| Options

Double head configurationDouble CMYK heads, White, Varnish, spot colors
Bridge LiftIncreasing media thickness up to 300 mm
High power vacuum turbine3 and 4,4 kW version available
Ink reservoir3 liter bulk ink container
SoftwareCaldera GrandRIP+ or
ColorGATE Productionserver or ErgoSoft RIP
Crash sensorPreventing the carriage from coalitions

| Options

Double head configurationDouble CMYK heads, White, Varnish, spot colors
Bridge LiftIncreasing media thickness up to 300 mm
Tandem vacuum tableIndependent loading from front and back sides
High power vacuum turbine3 and 4,4 kW version available
Ink reservoir3 liter bulk ink container
SoftwareCaldera GrandRIP+ or
ColorGATE Productionserver or ErgoSoft RIP
Crash sensorPreventing the carriage from coalitions

| User Interface

Operating systemWindows 7, 8 or Windows 10
Qpro2 print softwareOperator software (Included with the printer)
Optional 3rd party RIP softwareCaldera GrandRIP+ or
ColorGATE Productionserver or ErgoSoft RIP
Image formatsPDF, TIFF, JPEG, EPS
